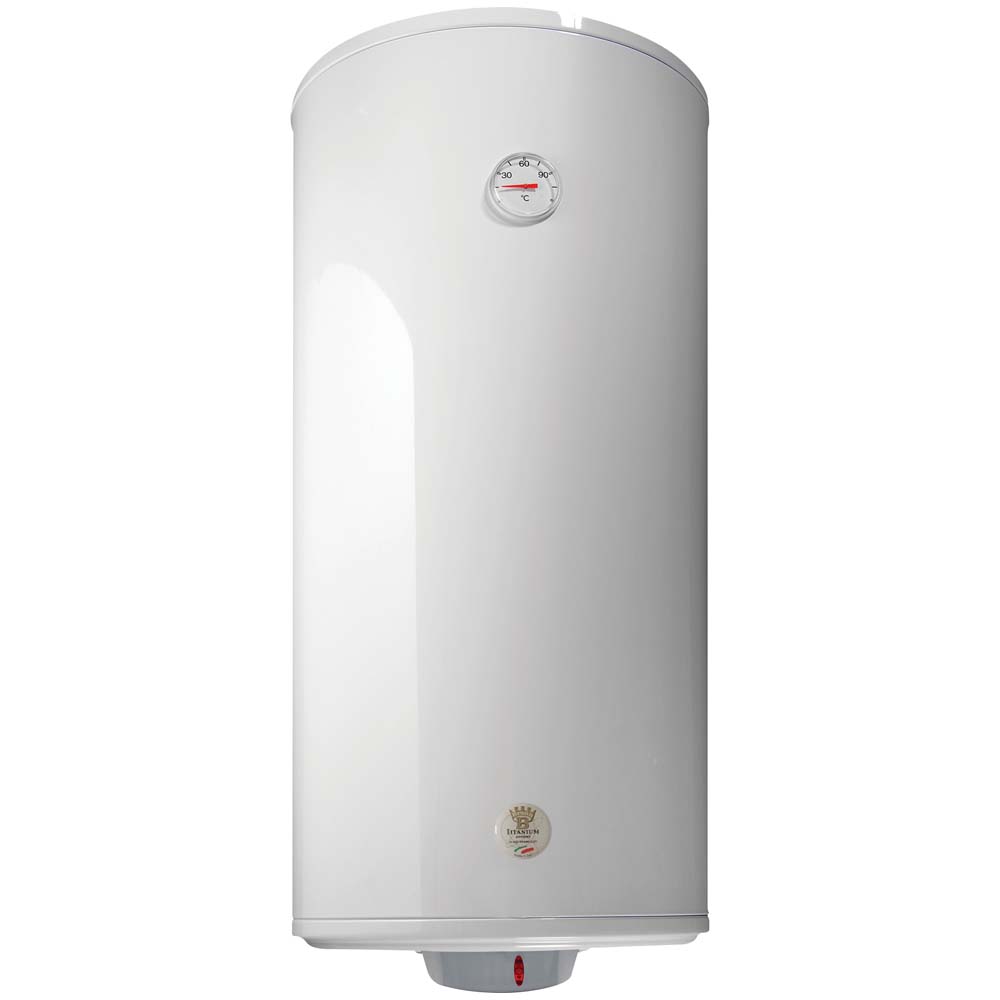

Bandini Braun SE

вертикальний монтаж, захисний анод

Код	Артикул	Ціна, грн
107012	SE0050C2VR152 Водонагрівач SE 50 BANDINI BRAUN 1 х 2,0 кВт 50 л 510 x 460 мм BANDINI SCALDABAGNI	8322 ₴		шт
107014	SE0080C2VR152 Водонагрівач SE 80 BANDINI BRAUN 1 х 2,0 кВт 80 л 700 x 460 мм BANDINI SCALDABAGNI	8603 ₴		шт
107015	SE0100C2VR152 Водонагрівач SE 100 BANDINI BRAUN 1 х 2,0 кВт 100 л 805 x 460 мм BANDINI SCALDABAGNI	9684 ₴	шт
107016	SE0120C2VR152 Водонагрівач SE 120 BANDINI BRAUN 1 х 2,0 кВт 120 л 1000 x 460 мм BANDINI SCALDABAGNI	14190 ₴	шт

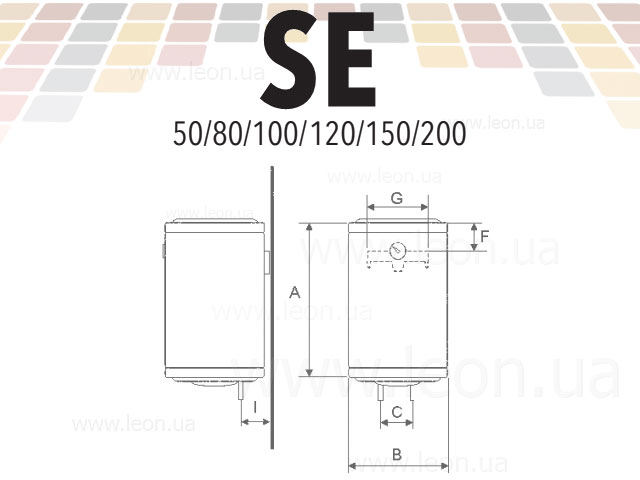

Model	A mm	B mm	C mm	F mm	G mm	I mm
SE 50	510	460	100	130	350	130
SE 80	700	460	100	130	350	130
SE 100	805	460	100	130	350	130
SE 120	1000	460	100	130	350	130
SE 150	935	550	140	180	350	130
SE 200	1105	550	140	180	350	130

INNER TANK
Steel Sheet - Hot rolled pickled UNI EN 10025-10111-5867 Fe P 13 steel thickness 18/10.

OUTER JACKET
Cold rolled low carbon steel flt products Fe P03 UNI EN 10130/10131 thickness 6/10.

PAINTING
Epoxy powder-color: White Plain Shine for house appliances

PROTECTION
Replaceable anode. Titanium glass enamelled 300 microns cooked in oven 850°C.

SAFETY
1/2” BRASS Non Return Pressure Relief Valve comply with UNIEN 12165 CW617N. To protect the water heater from internal overpressure more over to limit the blackflw of hot water into the feed pipe.

Polyurethane insulation 20mm.

Working Pressure: 8 bar.
Tested Pressure: 16 bar.
Service Acces: Reomvable acces flnge typewith 5 bolts for maintenance purpose, inner flnge outer diameter 121 mm - inner diameter 72mm.
Heating Elements: IMMERSION TYPE with flnge connection, COPPER faced heat resistant plastic base. Heating element made of nickel chromium wire embedded in mg oxide and sheathed in copper tube.
Thermostat: Temperature control adjustable immersion thermostat with bi-metallic safety control (automatic) high temperature limit. Setting of temperature: 49-72°C. Setting of safety (with manual reset): 85°C.
Wall Bracket: Wall bracket for horizontal water heaters. Rounding high sensivity thermometer.
230 V / 1Phase / 50Hz.

Водонагрівачі електричні
Тип монтажу	вертикальний
Тип ТЕНу	мокрий
Об'єм	50, 80, 100, 120
Форма корпусу	круглий класичний
